FEATURES
|

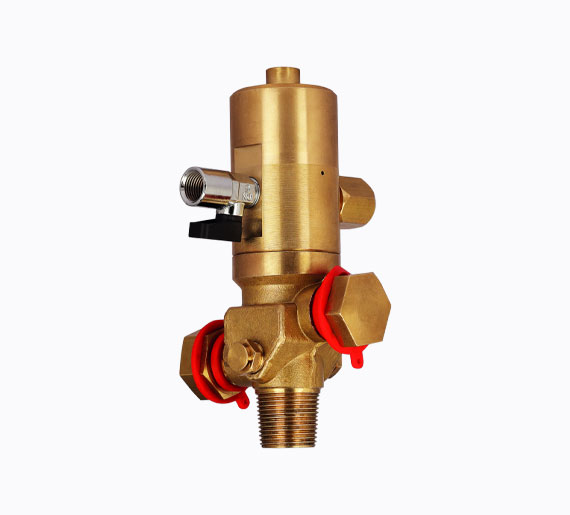

Material : Brass (Forged) Seat Material : PA6.6, EPDM Spring : Nickel Steel Suppression Agent : Carbon Dioxide Working Pressure of Valve : 60 ± 5 bar Working Pressure of Actuator : 20 ± 5 bar Inlet Thread : 25.4 X 1.814 RH Outlet Thread : 7/8” X 14 TPI UNF Filling Thread : 7/8” X 14 TPI UNF Gauge Connection : 9/16” X 18 TPI UNF Safety Connection : 1/4 ” X 19 TPI, BSPP Valve Seat : 12 mm Rupture Disc : 200 – 220 bar as per IS-3224 for CO2 Safety Valve : 35 ± 5 bar Weight : Approx 1.9 Kg Flow Rate With CO2 : 100 Kg / min Operating Range : -20°c to 65°c PESO Approval No. : G.3(40)297 Dated : 07.09.2021 |
