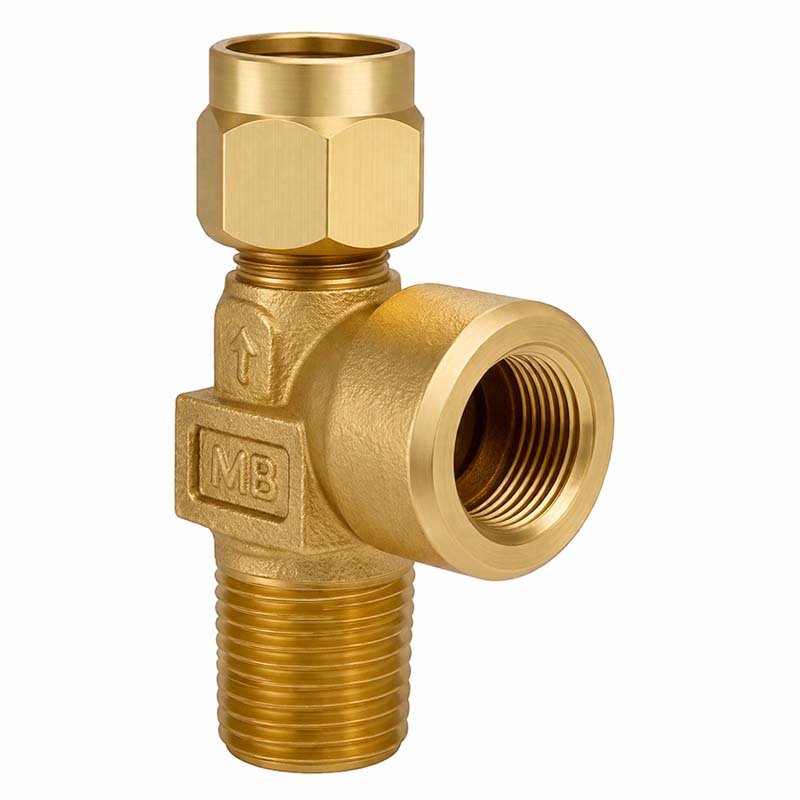

Accetylene/Hydrogen (C₂H₂)/H₂

This high-performance valve is specially designed for safe and efficient handling of Acetylene (C₂H₂) and Hydrogen (H₂) gases. Manufactured using high tensile forged brass, it ensures durability, reliability, and long service life even under high-pressure conditions.

Key Features:

• Precision-engineered for gas control applications
• Suitable for both Acetylene and Hydrogen gas systems
• Robust construction with forged brass body
• High resistance to corrosion and wear
• Complies with industry standards for safety and performance

Technical Specifications:

• Outlet: 2
• Inlet Size Options:
  • 25.4 mm (1 in 8)
  • 18.16 mm (1 in 8)
  • 3/4″ NGT (1 in 16)
  • 28.8 mm (3 in 25)
  • 31.75 mm (1 in 8)
• Valve Outlet Size: G 5/8 – LH (Internal)
• SS Spindle Size: 7.1 mm
• Material: High Tensile Brass (Forged)
• Working Pressure: 200 kgf/cm²
• Reference Standard: IS 3224
