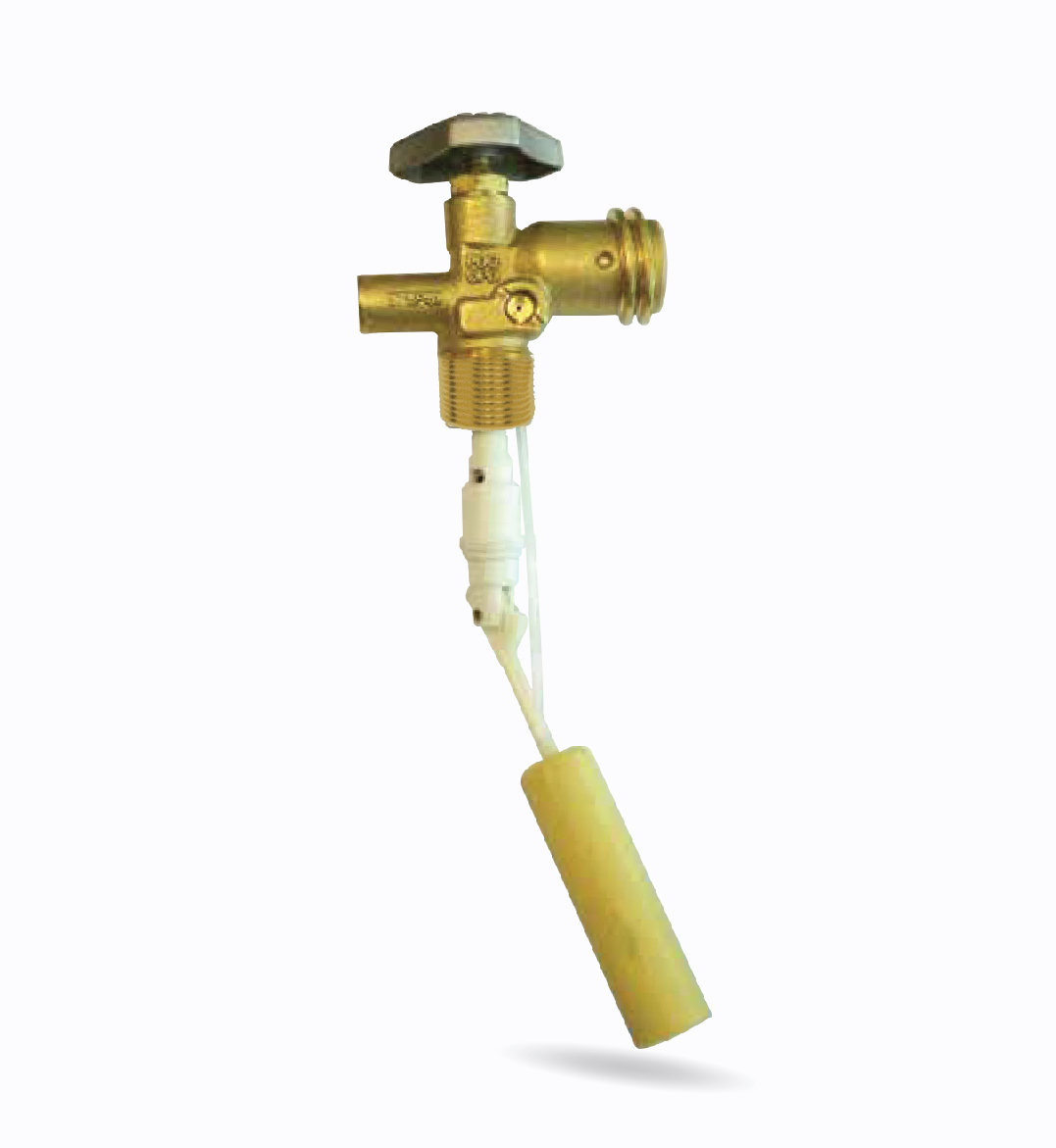

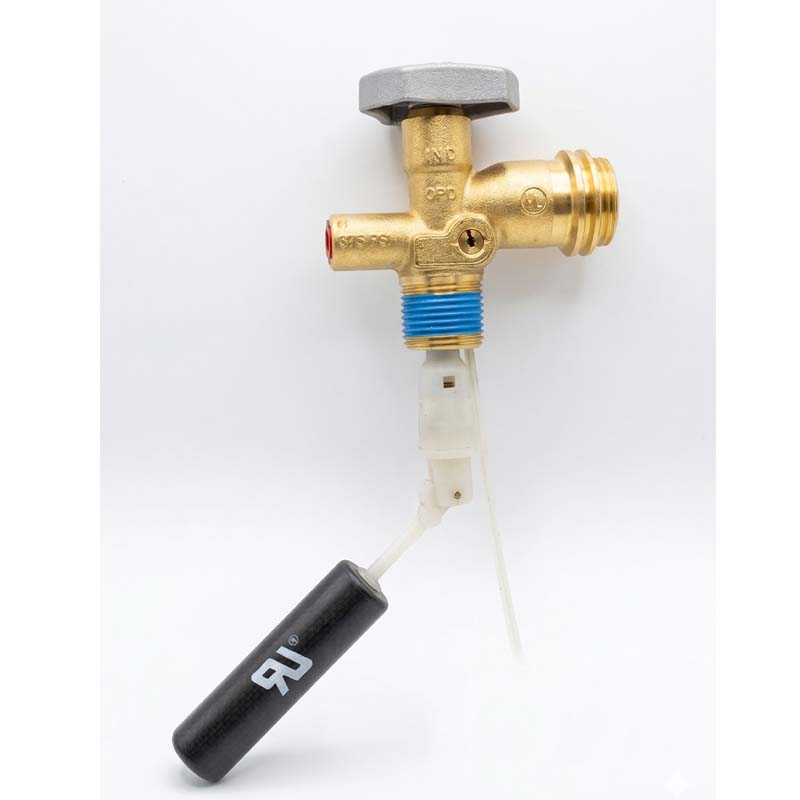

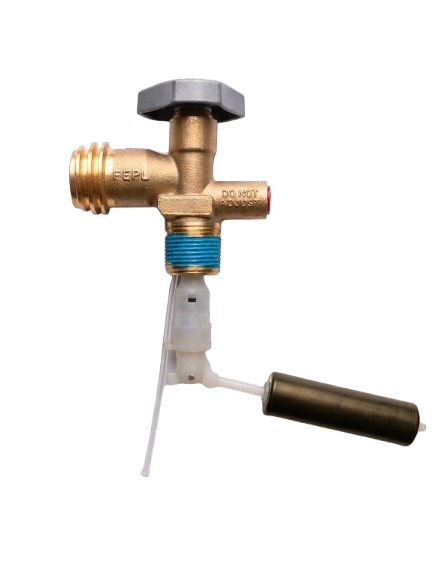

OPD Valve for Dot Propane/ LPG Cylinder with Outage Screw & Dip Tube (Up to 40lbs Capacity)

Product Specifications:

• Models: PV20DT4 (For 20lbs Capacity), PV30DT4.8 (For 30lbs Capacity) & PV40DT6.5 (For 40lbsCapacity)

• Product Name: OPD VALVE FOR DOT PROPANE CYLINDER (Up to 40lbs Capacity)

• Approval: UL (Under Process)

• Product Standard : UL 1769

• SRV Set Pressure: 375 psig (2.6Mpa)

• Inlet Connection of Valve: 3/4″ 14 NGT

• Outlet Connection of Valve : Type 1 ACME and POL (CGA791)

• Materials: Body: Brass, Rubber Parts: Nitrile Rubber, Springs: Stainless Spring Steel.

• Operating Temperature : -40°C to 55°C

• Dip Tube Length: 4.0″ (For 20lbs Capacity), 4.8″ (For 30lbs Capacity) & 6.5″ (For 40lbsCapacity)
