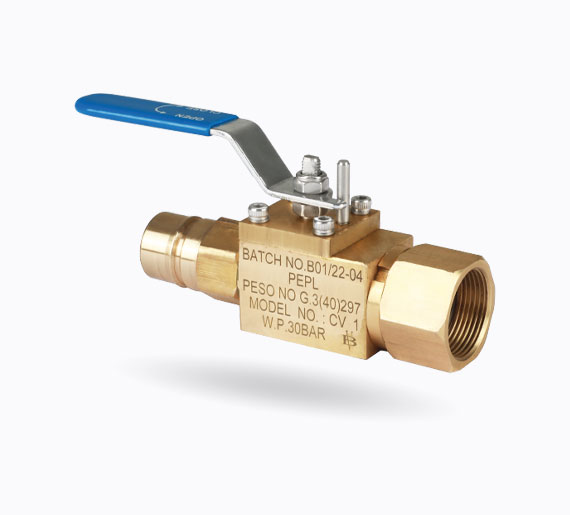

Actuator Valve

A prabha Actuator Valve as the name suggests is Fitted on outlet port of Hippo/Jumbo/ Sumo LPG Cylinder supplied by Oil Companies to actuate Combo Multifunctional Valve of cylinder to discharge of LPG from cylinder to Manifold System. This actuator valve is hand operated and also with self-closing valve Which will operate by Quick Coupling Connector (QCC) fitted with flexible hose of the manifold

FEATURES

  • Easy to fit & Easy maintenance
  • Less Leakage Points & Longer Service Life
  • Actuator is enabled with self-closing valve
  • Actuator have manual Open/Close lever to operate & control the flow of LPG.
  • The lever has permanent marking of Open/Close direction.
  • Bleeder Valve is provided to check liquid flow during withdrawal of LPG from cylinder & to bleed out residual LPG and depressurize the actuator.
Product Name: Actuator Valve
Approval: PESO Approved
Product Standard : EN 13175
Working Pressure: 30 Bar
Materials: Body: Brass, Rubber Parts: Nitrile,
Springs: Stainless Steel
Operating Temperature : -20°C to 65 ° C
Inlet Connection: M36 X 2 mm Female Thread
Outlet Connection : Self Closing Valve of dia 29.0 mm
suitable to inner Dia of QCC
Rated Flow: 62-5 Litter/min
